Unseenlabs delivers exclusive data by detecting radio frequency (RF) signals emitted by ships across vast maritime areas, and by geolocating and characterizing these RF signatures, it enables the monitoring of uncooperative vessels so-called "dark vessels" that evade traditional surveillance. Initially focused on the maritime domain, this unique space-based RF detection technology is now laying the groundwork for broader applications.
The Automatic Identification System (AIS) is the primary means of tracking ships at sea, yet it was not originally designed for surveillance and can be easily switched off or manipulated, creating challenges for governments, NGOs, maritime authorities, and marine insurers that depend on accurate data for security, enforcement, and risk assessment.
Unseenlabs delivers exclusive RF intelligence that surpasses the limitations of declarative systems and integrates seamlessly with existing land, sea, air, and space-based monitoring infrastructures, significantly enhancing intelligence and surveillance capabilities.
-
Key Features
- Launch of 20 RF monosatellite (as of December 2025)
- Simultaneous collection of various RF bands.
- Operated using monosatellite technology rather than cluster satellites, creating superior and unparalleled intelligence.

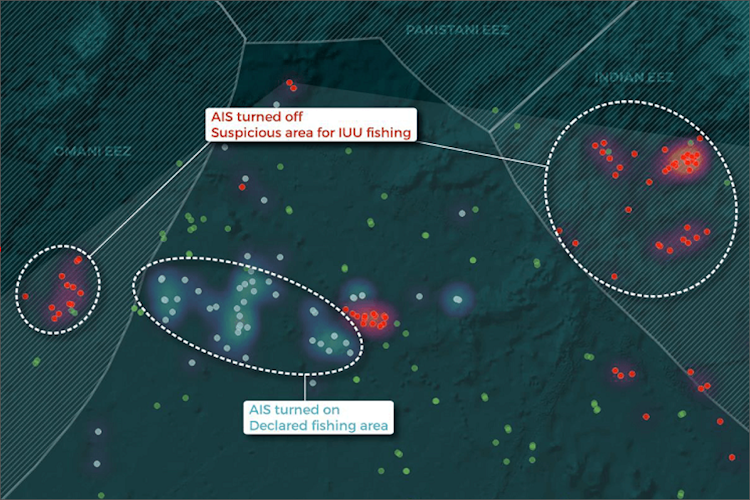

- Monitoring of illegal activities conducted by non-cooperative vessels.
- Revisit rate and delivery time compliant with operational missions.
-
- Data acquisition coverage area: 550 km X 550 km minimum.
- Capable of detecting all types of vessels, including military, coast guard, and research ships.
- Generation II satellites in development (approx. 150 kg) with expanded detection range, coveraging land, sea and space activities.
- Data Parameter
| Property | Description | Unit |
|---|---|---|
| ID | Unique ID | - |
| Timestamp_utc | The time of Acquisition | UTC date |
| RF_Frequency_MHz | Radar transmission detection date/time | MHz |
| Latitude_deg | Radar payload(ship) expected latitude | degree |
| Longitude_deg | Radar payload(ship) expected hardness | degree |
| Accuracy_level | Radar payload(ship) expected position accuracy level 3 classification information (High/Medium/Low) |
- | Pulse_duration_ns | Radar Transmission Pulse Average Duration | ns |
| Pulse_repetition_frequency_Hz | Radar Transmission Average Pulse Repeat Frequency | Hz |
| Waveform | An assigned number that characterizes radar modes based on similar RF parameter values |
- |

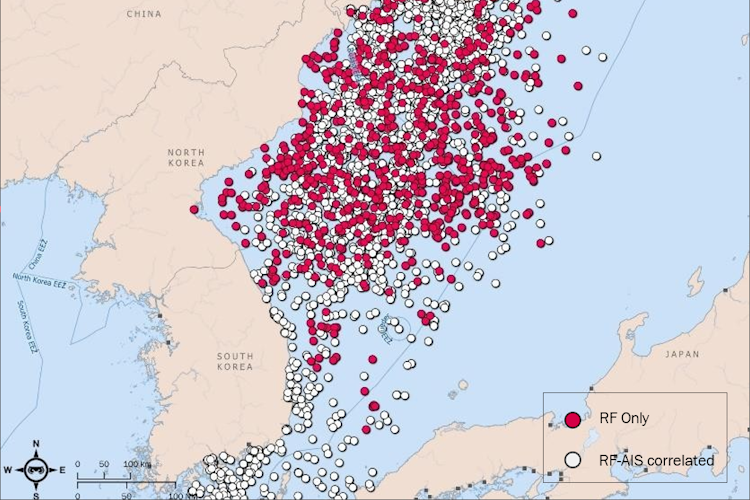

- Coverage(Sample)
